Cast Steel Desulfurization Pump, Single Stage Suction

Cast Steel Desulfurization Pump, Single Stage Suction
Cast Steel Desulfurization Pump, Single Stage Suction

Key Specifications / Features

Model No.: Hits: 34

Desulfurization Pump Manufacturer in China: Single-stage, Single-suction Desulfurization Pump in Cast Steel, Cast Iron, Stainless Steel, 3.7-65.2 Meters.
Request a quote

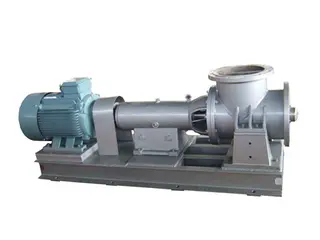

Previous: Slurry Circulation Pump Cast Iron, Stainless Steel

Detail Information

Product Name: Cast Steel Desulfurization Pump.
Material: Cast Steel, Cast Iron, Stainless Steel.
Pump casing & blade wheel: two-phase alloys.
Head: 3.7 to 65.2 Meters.

Features
Horizontal type
Single-stage
Single-suction

More information
Model Speed n Capacity Q Head H Shanft power Pa Efficiency NPSHr Motor power
 Model power/pressure
r/min m3/h m KW % m   KW/V
300TL-100 590 913 65.2 243.2 66.7 4.1 Y450-10 315/6000
1785 59.7 361.2 80.4 Y500-10 450/6000
1826 59.3 365.6 80.7 Y500-10 450/6000
490 758 45 139.3 66.7 3 Y450-12 185/6000
1482 41.2 206.9 80.4 Y450-12 250/6000
1517 40.9 209.5 80.7 Y450-12 250/6000
300TL-56 980 789 46 148.7 66.5 5.5 Y355M2-6 185/380
1415 40.8 195.7 80.4 Y355L2-6 250/380
1568 38.8 204.9 80.9 Y355L2-6 250/380
730 588 25.5 61.5 66.5 3.5 Y315M-8 75/380
1054 22.6 80.9 80.4 Y355L2-8 110/380
1168 21.5 84.7 80.9 Y315L2-8 110/380
250TL-75 730 447 54.1 105.8 62.3 3 Y355M1-8 132/380
819 51 150 76 Y355L1-8 185/30
1102 46.2 183.5 75.6 Y400-8 220/6000
590 361 35.3 55.8 62.3 2.3 Y315L2-10 75/380
662 33.3 79.2 76 Y355M1-10 90/380
891 30.2 96.9 75.6 Y355M2-10 110/380
200TL-60 980 435 62 114.1 64.4 4 Y315L2-6 132/380
740 58 146.2 80 Y355M2-6 185/380
870 55.5 159.1 82.7 Y355M2-6 185/380
730 324 34.4 472 64.4 2.5 Y315M-8 75/380
551 32.2 60.4 80 Y315L1-8 90/380
648 30.8 65.8 82.7 Y315L1-8 90/380
150Tl-60 980 270 63.5 80.3 58.2 3.8 Y315L1-6 110/380
470 60.5 107.6 72 Y315L2-6 132/380
550 58.7 117.9 74.6 Y355M1-6 160/380
730 201 35.2 33.2 58.2 2.5 Y280M-8 45/380
350 33.6 44.5 72 Y315S-8 55/380
410 32.6 48.7 74.6 Y315M-8 75/380
150TL-50 980 230 43.1 42.7 63.3 3 Y280M-6 55/380
380 40 552 75 Y315S-6 75/380
460 37.8 61.7 76.8 Y315S-6 75/380
730 171 23.9 17.6 63.3 2.5 Y250M-8 30/380
283 222 22.8 75 Y250M-8 30/380
343 21 25.5 76.8 Y280S-8 37/380
100TL-42 1480 140 70.8 50.3 53.7 4.O Y280S-4 75/380
245 67 65.8 68 Y280M-4 90/380
275 65.5 69.7 70.4 Y280M-4 90/380
  980 93 31 14.6 53.7 2.5 Y200L2-6 22/380
162 29.4 19.1 68 Y225M-6 30/380
182 28.7 20.2 70.4 Y225M-6 30/380
730 69 17.2 6 53.7 1.8 Y180L-8 11/380
121 16.3 7.9 68 Y180L-8 11/380
136 15.9 8.4 70.4 Y180L-8 11/380
80TL-52 980 71 48.1 24.O 38.8 2.1 Y225M-6 30/380
121 46.3 .29.2 52 Y250M-6 37/380
160 43.4 33.7 56.3 Y280S-6 45/380
730 53 26.7 9.9 38.8 1.5 Y200L-8 15/380
90 25.7 12.1 52 Y225S-8 18.5/380
119 24.1 13.9 56.3 Y225S-8 18.5/380
80TL-36 1480 98 51.4 23.6 58.2 3.7 Y200L-4 30/380
140 48 27.7 66 Y225S-4 37/380
190 42.7 32.7 67.7 Y225M-4 45/380
  980 65 22.5 6.8 58.2 2.5 Y160L-6 11/380
93 21 8.1 66 Y160L-6 11/380
126 18.7 9.5 67.7 Y180L-6 15/380
730 48 12.5 2.8 58.2 1.4 Y160M2-8 5.5/380
69 11.7 3.3 66.O Y160M2-8 5.5/380
94 10.4 3.9 67.7 Y160M2-8 5.5/380

 Model Speed n Capacity Q Head H Shanft power Pa Efficiency NPSHr Motor power
 Model power/pressure
r/min m3/h m KW % m KW/V
65TL-30 1460 47 34.8 7.9 56.2 3 Y160M-4 11/380
62 33.9 9.2 62 Y160L-4 15/380
76 32 10.4 63.5 Y160L-4 15/380
980 32 15.7 2.4 56.2 2.1 Y132M1-6 4/380
42 15.3 2.8 62 Y132M2-6 5.5/380
51 144 3.2 63.5 Y132M2-6 5.5/380
730 24 8.7 1 56.2 1.3 Y132S-8 2.2/380
31 8.5 1.2 62.O Y132S-8 2.2/380
38 8 1.3 63.5 Y132S-8 2.2/380
50Tl-40 1480 42 66.2 23.5 32.2 2.9 Y200L-4 30/380
68 63.5 28.2 41.7 Y225S-4 37/380
83 61.6 31.2 44.7 Y225S-4 37/380
980 28 29 6.8 32.2 1.4 Y160L-6 11/380
45 27.8 8.2 41.7 Y160L-6 11/380
55 27 9 44.7 Y180L-6 15/380
730 21 16.1 2.8 32.2 1 Y160M2-8 5.5/380
34 15.4 3.4 41.7 Y160M2-8 5.5/380
41 15 3.7 44.7 Y160M2-8 5.5/380
50TL-33 1480 26 42.5 9.2 32.8 6 Y160L-4 15/380
40 40 10.7 40.6 Y180M-4 18.5/380
54 34.5 12.3 41.4 Y180M-4 18.5/380
980 17 18.6 2.7 32.8 3.3 Y132M1-6 4/380
26 17.5 3.1 40.6 Y132M2-6 5.5/380
36 15.1 3.6 41.4 Y132M2-6 5.5/380
730 13 10.3 1.1 32.8 1.9 Y132S-8 2.2/380
20 9.7 1.3 40.6 Y132S-8 2.2/380
27 8.4 1.5' 41.4 Y132M-8 3.0/380
40TL-19 2930 16 57.4 6.5 39.2 4.9 Y160M1-2 11/380
25 55.6 6.8 55.4 Y160M1-2 11/380
30 54.9 7.6 58.8 Y160M1-2 11/380
1400 8 13.1 O.7 39.2 1.6 Y90l-4 1.5/380
12 12.7 O.7 55.4 Y90L-4 1.5/380
14 12.5 0.8 58.8 Y90L-4 1.5/380
40TL-17 2900 9 44.6 3.3 33.2 4.5 Y132S1f2 5.5/380
18 42.7 4.2 49.5 Y132S2-2 7.5/380
23 39.3 4.7 52.4 Y132S2-2 7.5/380
1400 4 10.4 0.4 33.2 2.5 Y801-4 0.55/380
9 10 0.5 49.5 Y90S-4 1.1/380
11 9.2 0.5 52.4 Y90S-4 1.1/380
350TL-78 730 1314 49.8 278.6 64 6.5 Y450-8 315/6000
2398 43.3 362.8 78.O Y450-8 400/6000
2826 38.6 3932 75.6 Y450-8 450/6000
590 1062 32.5 147.1 64 4.2 Y355L2-10 160/380
1938 28.3 191.5 78 Y450-10 220/6000
2284 25.2 207.6 75.6 Y450-10 250/6000
450TL-85 590 2700 34 312.7 80 6.6 Y450-10 355/6000
4500 30 422.8 87 Y500-10 500/6000
5400 26 455.5 84 Y500-10 560/6000
490 2242 23.5 179.1 80 4.6 Y450-12 200/6000
3737 20.7 242.2 87 Y500-12 280/6000
4485 17.9 260.9 84 Y500-12 315/6000
550TL-100 490 3300 32.3 363.1 80 6 Y500-12 400/6000
5500 28 476.9 88.O Y5602-12 560/6000
6600 24.5 518.4 85 Y5603-12 630/6000
650TL-90 490 3900 31.5 413.3 81 6.5 Y5601-12 500/6000
6500 28.5 587 86 Y6301-12 710/6000
7800 25.2 637.7 84 Y6301-12 710/6000
800TL-100 490 5100 31.0 528.6 81.5 7.8 Y5603-12 630/6000
8500 25.6 705.9 84 Y6302-12 800/6000
10200 20.3 663.8 85 Y6302-12 800/6000

Model Speedn CapacityQ HeadH ShanftpowerPa Efficiency Motorpower
Model power/pressure
r/min m3/h m KW % KW/V
150TLL-35 980 198 17.9 15.3 63.1 Y250M-6 V1 380/380
332 13.2 17.5 68.1
364 12.1 18 66.8
730 147 10 6.3 63.1 Y200L-8 V1 15/380
247 7.3 7.2 68.1
271 6.7 7.4 66.8
590 119 6.5 3.3 63.1 Y160L-6 B3 11/380
200 4.8 3.8 68.1
219 4.4 3.9 66.8
100TLL-34 1480 157 36.8 26.1 60.2 Y225M-4 V1 45/380
214 32.6 29.2 65.1
293 24.4 33.5 58.2
970 103 15.8 7.4 60.2 Y180L-6 V1 15/380
140 14 82 65.1
192 10.5 9.4 58.2
80TLL-36 1480 105 45.5 25 52.1 Y225M-4 V1 45/380
144 41.4 27.9 58.2
201 32.5 32.8 54.2
970 69 19.5 7 52.1 Y180L-6 V1 15/380
94 17.8 7.8 58.2
132 14 9.3 54.2
65TLL-30 1470 38 34.7 82 43.7 Y180M-4 V1 18.5/380
58 31.9 9.7 51.9
98 26 13.4 51.7
960 25 14.8 2.3 43.7 Y132M2-6 B5 5.5/380
38 13.6 2.7 51.9
64 11.1 3.7 51.7
50TLL-20 1440 17 10.7 1.4 34.9 Y112M-4 B5 4/380
25 9.2 1.6 38.6
38 5.9 2 31.2
910 11 4.3 0.4 34.9 Y90L-6 B5 1.1/380
16 3.7 0.4 38.6
24 2.4 0.5 31.2
40TLL-25 1440 10.1 21.5 2.2 26.1 Y112M-4 B5 4/380
18.4 19 2.6 36.6
22.9 16.8 2.8 37.6
910 6.4 8.6 0.6 26.1 Y90L-6 B5 1.1/380
11.6 7.6 0.6 36.6
14.4 6.7 0.7 37.6
40TLL-21 1440 9.5 17 1.6 27.9 Y112M-4 B5 4/380
20.3 15.3 2 42.4
25.9 14.1 2.2 44.6
910 6 6.8 0.4 27.9 Y90L-6 B5 1.1/380
11.6 6.1 0.5 42.4
16.4 5.6 0.6 44.6
