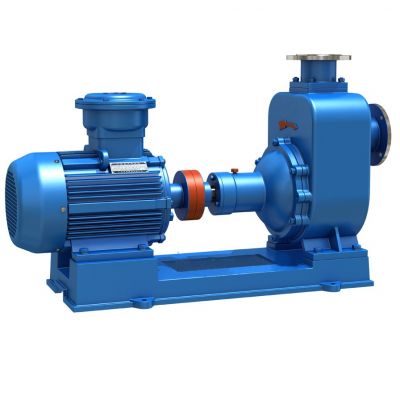

CYZ-A Self-priming Oil Pump, Flow Capacity 3~1000 m3/h
Key Specifications / Features
Model No.: CYZ-A Hits: 140
China Self-priming Oil Pump Manufacturer Shinjo Supplies CYZ-A Self-priming Oil Pump, Flow Capacity 3~1000 m3/h, Head up to 75 meters.
Request a quote
Tags:
Detail Information
Introduction:
CYZ-A self-priming oil pump is a self-priming centrifugal pump series. It has the characteristics of simple structure, convenient operation and maintenance, smooth operation, large displacement, high efficiency, easy to adjust, strong self-priming ability, wide application range and so on. CYZ self priming pump is used to transport gasoline, kerosene, diesel oil, aviation kerosene and other petroleum products. The medium temperature is -20℃ ~ +80℃, it is an excellent Marine loading and unloading oil pump, can also be used as a tank sweeping pump. And suitable for land oil depot, tank truck and other oil storage device oil conveying. It can also be used to transport seawater, fresh water and so on.
Performance Range:
CYZ-A self-priming oil pump is a self-priming centrifugal pump series. It has the characteristics of simple structure, convenient operation and maintenance, smooth operation, large displacement, high efficiency, easy to adjust, strong self-priming ability, wide application range and so on. CYZ self priming pump is used to transport gasoline, kerosene, diesel oil, aviation kerosene and other petroleum products. The medium temperature is -20℃ ~ +80℃, it is an excellent Marine loading and unloading oil pump, can also be used as a tank sweeping pump. And suitable for land oil depot, tank truck and other oil storage device oil conveying. It can also be used to transport seawater, fresh water and so on.
Performance Range:
- Diameter: 25-300mm
- Material: Cast iron pump casing, bronze impeller
- Capacity: 3~1000 m3/h
- Head: 12~75 m
- Viscosity: <75cSt
- Temperature: -20~80°c
- Shaft Seal: Mechanical seals on shaft end.
- Working Principle: Centrifugal, self-priming
- Petrol, kerosene, diesel oil,etc
- The temperature of medium is -20~80°c
- Load and unload oil pump in boat
- Convey oil in the land depot and oil truck
- Carry the seawater and freshwater
- Carry swimming pool water
| Model | Capacity | Head | Suction | Speed | Self-priming | Power KW | Size mm | Weight | |||
| m3/h | L/s | m | m | r/min | min/5m | Shaft | Motor | Suction | Discharge | kg | |
| 25CYZ-A-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 1.9 | 0.46 | 0.75 | 25 | 25 | 72 |
| 25 CYZ-A-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.8 | 0.8 | 1.1 | 25 | 25 | 80 |
| 40 CYZ-A-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.9 | 0.87 | 1.1 | 40 | 32 | 85 |
| 40 CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 40 | 40 | 138 |
| 50 CYZ-A-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 2.4 | 1.1 | 1.5 | 50 | 50 | 90 |
| 50 CYZ-A-20 | 18 | 5 | 20 | 6.5 | 2900 | 1.9 | 1.8 | 2.2 | 50 | 50 | 98 |
| 50 CYZ-A-30 | 20 | 5.6 | 30 | 6.5 | 2900 | 1.5 | 2.6 | 4 | 50 | 50 | 140 |
| 50 CYZ-A-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 50 | 50 | 145 |
| 50 CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 50 | 50 | 145 |
| 50 CYZ-A-50 | 12 | 3.5 | 50 | 6.5 | 2900 | 1.4 | 4.3 | 5.5 | 50 | 50 | 160 |
| 50 CYZ-A-60 | 515 | 4.2 | 60 | 6.5 | 2900 | 1.3 | 6.2 | 7.5 | 50 | 50 | 190 |
| 50 CYZ-A-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 1.3 | 9.8 | 11 | 50 | 50 | 240 |
| 65 CYZ-A-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 2 | 1.9 | 3 | 65 | 65 | 100 |
| 65 CYZ-A-32 | 25 | 6.9 | 32 | 6 | 2900 | 1.5 | 4.4 | 5.5 | 65 | 65 | 165 |
| 80 CYZ-A-13 | 35 | 9.7 | 13 | 6 | 2900 | 3.4 | 1.9 | 3 | 80 | 80 | 107 |
| 80 CYZ-A-17 | 43 | 12 | 17 | 6 | 2900 | 1.8 | 3.1 | 4 | 80 | 80 | 156 |
| 80 CYZ-A-22 | 40 | 11.1 | 22 | 6 | 2900 | 1.9 | 4.4 | 5.5 | 80 | 80 | 169 |
| 80 CYZ-A-25 | 50 | 13.9 | 25 | 6 | 2900 | 1.5 | 5.2 | 7.5 | 80 | 80 | 177 |
| 80 CYZ-A-32 | 50 | 13.9 | 32 | 6 | 2900 | 1.5 | 6.8 | 7.5 | 80 | 80 | 180 |
| 80 CYZ-A-55 | 60 | 16.7 | 55 | 6 | 2900 | 1.5 | 15 | 18.5 | 80 | 80 | 310 |
| 80 CYZ-A-70 | 60 | 16.7 | 70 | 6 | 2900 | 1.2 | 20.1 | 22 | 80 | 80 | 333 |
| 100 CYZ-A-20 | 100 | 27.8 | 20 | 6 | 2900 | 1.8 | 7.8 | 11 | 100 | 100 | 258 |
| 100 CYZ-A-40 | 100 | 27.8 | 40 | 6 | 2900 | 1.8 | 16.3 | 22 | 100 | 100 | 455 |
| 100 CYZ-A-40A | 100 | 27.8 | 40 | 6 | 1450 | 1.5 | 18.5 | 22 | 100 | 100 | 520 |
| 100 CYZ-A-65 | 100 | 27.8 | 65 | 6 | 2900 | 1.8 | 27.7 | 30 | 100 | 100 | 620 |
| 100 CYZ-A-75 | 70 | 19.4 | 75 | 6 | 2900 | 1.8 | 24.2 | 30 | 100 | 100 | 639 |
| 150 CYZ-A-55 | 170 | 47.2 | 55 | 5 | 2900 | 1.8 | 39.2 | 45 | 150 | 150 | 830 |
| 150 CYZ-A-65 | 170 | 47.2 | 65 | 5 | 2900 | 1.3 | 46.3 | 55 | 150 | 150 | 957 |
| 150 CYZ-A-65A | 170 | 47.2 | 65 | 5 | 1450 | 1.2 | 49.8 | 55 | 150 | 150 | 1138 |
| 150 CYZ-A-80 | 160 | 44.4 | 80 | 5 | 2900 | 1.2 | 53.6 | 55 | 150 | 150 | 986 |
| 200 CYZ-A-32 | 400 | 111.1 | 32 | 5 | 1450 | 2 | 52.1 | 55 | 200 | 200 | 1205 |
| 200 CYZ-A-63 | 280 | 77.8 | 63 | 5 | 1450 | 1.5 | 73.9 | 90 | 200 | 200 | 1338 |
| 200 CYZ-A-65 | 350 | 97.2 | 65 | 5 | 1450 | 1.5 | 97.2 | 110 | 200 | 200 | 1553 |
| 250 CYZ-A-32 | 550 | 152.8 | 32 | 5 | 1450 | 2 | 72.3 | 75 | 250 | 250 | 1307 |
| 250 CYZ-A-50 | 400 | 111.1 | 50 | 5 | 1450 | 2 | 80 | 90 | 250 | 250 | 1486 |
| 250 CYZ-A-55 | 450 | 125 | 55 | 5 | 1450 | 2 | 102.1 | 110 | 250 | 250 | 1681 |
| 250 CYZ-A-75 | 400 | 111.1 | 75 | 5 | 1450 | 1.5 | 125.6 | 132 | 250 | 250 | 1829 |
| 300 CYZ-A-32 | 600 | 166.7 | 32 | 5 | 1450 | 2 | 79.2 | 90 | 300 | 300 | 1608 |
| 300 CYZ-A-50 | 500 | 138.9 | 50 | 5 | 1450 | 2 | 107.6 | 110 | 300 | 300 | 1728 |
| 300 CYZ-A-55 | 550 | 152.8 | 55 | 5 | 1450 | 2 | 117.6 | 132 | 300 | 300 | 1995 |
