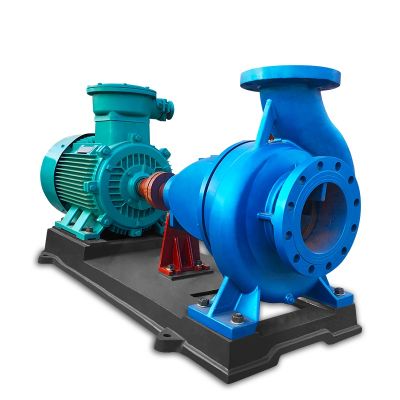

IS Horizontal Clean Water Centrifugal Pump, Capacity 5 - 400 m3/h
Key Specifications / Features
Model No.: IS Hits: 584
China Centrifugal Pump Manufacturer Shinjo Supplies IS Horizontal Clean Water Centrifugal Pump , Capacity 5 - 400 m3/h, Delivery Head From 4-125 m, Size From DN50-DN200 mm (2" to 8 Inch).
Request a quote
Tags:
Detail Information
Introduction:
IS Horizontal Clean Water Centrifugal Pump designed according to the properties and dimensions specified in the national standard ISO2858, the liquid containing no solid particles and its physical and chemical properties are similar to water for suction and delivery. It is mainly composed of pump body, pump cover, impeller, shaft, seal ring, shaft sleeve and suspension bearing parts. The pump body and pump cover of IS pump are divided from the back of the impeller, which IS usually referred to as the rear door structure. Its advantage is convenient maintenance, maintenance does not move the pump body, suction line, discharge line and motor, just remove the intermediate coupling lengthening, you can exit the rotor parts, maintenance.
Performance Range:
Capacity: 5 - 400 m3/h
Delivery Head: 4-125 m
Size.: DN50-DN200 mm
Pump Material: Cast Iron
Suitable Medium: Clean Water (No solid contains)
Liquid Temperature: ≤ 80 ℃
Applications:
Widely used in industry, agriculture and urban drainage, fire water supply.
IS Horizontal Clean Water Centrifugal Pump designed according to the properties and dimensions specified in the national standard ISO2858, the liquid containing no solid particles and its physical and chemical properties are similar to water for suction and delivery. It is mainly composed of pump body, pump cover, impeller, shaft, seal ring, shaft sleeve and suspension bearing parts. The pump body and pump cover of IS pump are divided from the back of the impeller, which IS usually referred to as the rear door structure. Its advantage is convenient maintenance, maintenance does not move the pump body, suction line, discharge line and motor, just remove the intermediate coupling lengthening, you can exit the rotor parts, maintenance.
Performance Range:
Capacity: 5 - 400 m3/h
Delivery Head: 4-125 m
Size.: DN50-DN200 mm
Pump Material: Cast Iron
Suitable Medium: Clean Water (No solid contains)
Liquid Temperature: ≤ 80 ℃
Applications:
Widely used in industry, agriculture and urban drainage, fire water supply.
| Model | Capacity | Head | Speed | Motor | Size mm | |
| m3/h | m | r/min | KW | Suction | Discharge | |
| IS50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-200 | 12.5 | 50 | 2900 | 0.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IS50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| IS65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IS65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| IS65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| IS65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| IS65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| IS80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 80 | 65 | |
| IS80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| IS80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| IS80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| IS80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| IS100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| IS100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| IS100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| IS100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| IS100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| IS125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| IS125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 11 | 125 | 100 | |
| IS125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| IS125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| IS150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| IS150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| IS150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| IS200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| IS200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| IS200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
