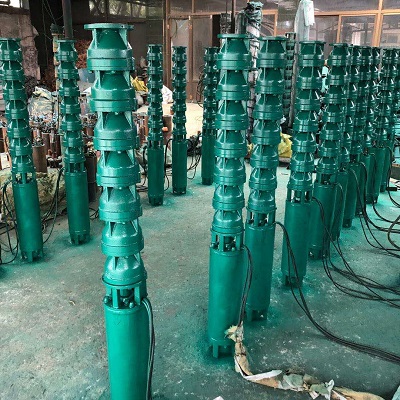

QJ/QJR Submersible Borehole Pump (Deep Well Pump), Size DN250
Key Specifications / Features
Model No.: QJ250 Hits: 209
China Class QJ/QJR Submersible Borehole Pump (Deep Well Pump) Manufacturer Shinjo Supplies Good Quality Submersible Borehole Pump (Deep Well Pump) Worldwide.
Request a quote
Tags:
Detail Information
General
QJ/QJR Submersible Borehole Pump (Deep Well Pump) designed for pumping clean water from deep wells, rivers, reservoirs and mines etc., as well as applications in industrial water supply , agricultural irrigation projects. Fire fighting and so on.
QJR is specially designed for geothermal applications featured by heat-resisting, anti-corrosion and anti-aging properties, water temperature up to 90℃
Construction & Features
Flow Range：5 ~ 1000m3/hr
Head Range：10 ~ 400m
Fluid Temp.：0 ~ 90℃
PH Value： 6.5 ~ 8.5
Sand Content：up to 0.01% for stator with excellent insulation.
250QJ Submersible Pump Performace Data Table
View our range of Borehole Pumps
150QJ Submersible Pump Performace Data Table
200QJ Submersible Pump Performace Data Table
225QJ Submersible Pump Performace Data Table
300QJ Submersible Pump Performace Data Table
350QJ Submersible Pump Performace Data Table
500QJ Submersible Pump Performace Data Table
550QJ Submersible Pump Performace Data Table
QJ/QJR Submersible Borehole Pump (Deep Well Pump) designed for pumping clean water from deep wells, rivers, reservoirs and mines etc., as well as applications in industrial water supply , agricultural irrigation projects. Fire fighting and so on.
QJR is specially designed for geothermal applications featured by heat-resisting, anti-corrosion and anti-aging properties, water temperature up to 90℃
Construction & Features
- Compact vertical centrifugal multi-stage design with perfect standardization and generalization, easy operation and convenient maintenance.
- A complete electric submersible pump includes a water pump set, electric motor, a discharge piping, water-proof cable and a control panel.
- Submersible motor filled with clean water for cooling and lubrication. And the pressure regulation switch, located at the bottom of motor, shall automatically operate to
- balance the pressure fluctuation caused by temperature variations.
- A sand slinger and oil-sealed skeleton are equipped at the upper part of motor to form a closed operating system for the motor, thus preventing any sand to penetrate into the motor.
- Water injection hole, as well as air release hole, are designed at the upper part of the motor, and water release hole at bottom (lower) part.
- Thrust bearing and collar are designed at lower part of motor to stand the weight of the squirrel caged rotor and the axial thrust residual.
- Water-proof electromagnetic wiring for stator with excellent insulation.
Flow Range：5 ~ 1000m3/hr
Head Range：10 ~ 400m
Fluid Temp.：0 ~ 90℃
PH Value： 6.5 ~ 8.5
Sand Content：up to 0.01% for stator with excellent insulation.
